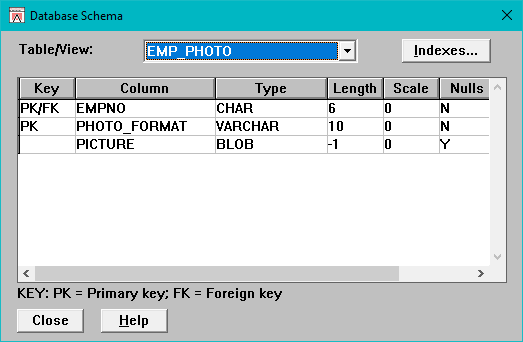

Table/View

Lists the tables and views in the database.

Indexes

Displays the Indexes for Table dialog box

Key

Indicates if the column is a primary key (PK), a foreign key (FK), or a primary/foreign key (PK/FK)

Double-click on one of these rows to display a dialog box that shows the relationships between the tables.

Column

Displays the name of the column.

Type

Displays the type of the column.

Length

Displays the length of the column.

Scale

Displays the precision of the column, which is the number of places to the right of the decimal point in decimal numbers.

Nulls

Indicates whether the column allows null values (Y for Yes, N for No).

Close

Closes the dialog box.

Help

Displays help for the dialog box.
