Navigation Sheets

Scroll Prev Top Next More

The Navigation Sheets use the facilities of the Property Sheet module to display lists of items parsed from the Source code file that have been loaded:

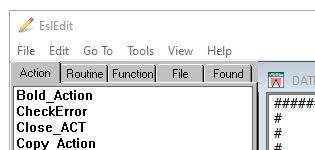

NavigationTabs



The items have been grouped into 5 sections, which can be accessed via the tabs on the top of each sheet. Each list is sorted into alphabetic order to aid the location of the required items. The current list of navigation items are:

Action routines

Subroutines

Function declarations

Files included in the application

Found lines from the "list" option in the "Find & Replace" dialog. This list is in the order the lines are found, headed by the search criteria.

To jump to any of the parsed items, merely select the appropriate navigation sheet, then double-click on the item within the list. When the item is double-clicked EslEdit uses information parsed when each file is loaded and saved to display the required file and position the text.
