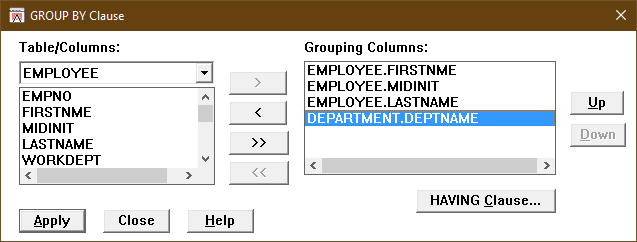

Table

Lists the tables in the FROM clause of the current statement. When you select a table, its columns appear in the Columns list box.

Columns

Lists the columns in the selected table. Select some or all columns.

>

Copies the highlighted columns in the Columns list box to the Grouping Columns list box.

<

Removes the highlighted columns from the Grouping Columns list box.

>>

Copies all columns in the Columns list box to the Grouping Columns list box.

<<

Removes all columns from the Grouping Columns list box.

Grouping Columns

Lists the columns in the select list of the current statement, excluding any computed columns.

You can remove columns from this list, or move a column up or down.

Up

Moves the highlighted column up one position in the Grouping Columns list box.

Down

Moves the highlighted column down one position in the Grouping Columns list box.

HAVING Clause

Adds the GROUP BY clause to the SQL Editor window, and closes the GROUP BY dialog box.

Displays the HAVING Clause dialog box, which you can use to create a HAVING clause for the current statement.

Apply

Adds the GROUP BY clause to the current statement and displays it in the SQL Editor window.

Close

Closes the dialog box. If you have not applied the clause, it does not appear in the SQL Editor window.

Help

Displays help for the dialog box.
