List Sessions
The following is sample output for the List Sessions output type:
Number of started host sessions = 1
Short Long
Name Name Rows Columns Type
----- -------- ---- ------- ------------
A ESL 24 80 3270 Host
Session Data

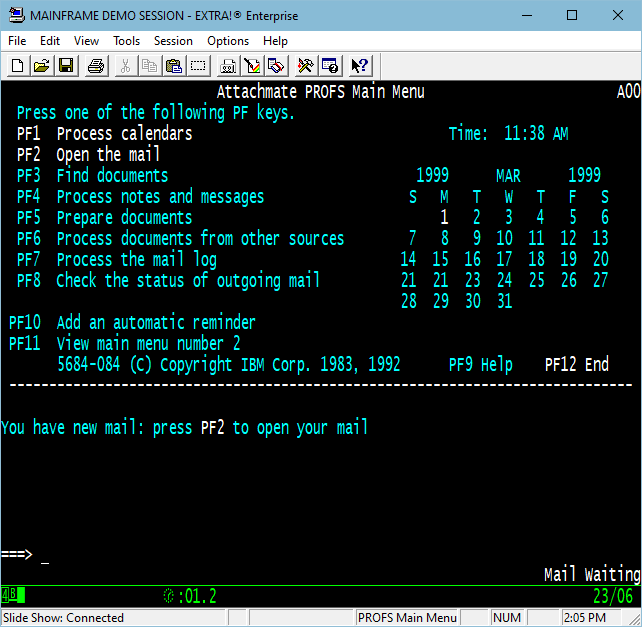

With the above screen displayed, the following is sample output if Session Data and all three check boxes are selected.
ESLFields utility - Version 9.11 (32-bit HLLAPI)
Copyright (C) 1982-2009 ESL Syndetic Limited
All Rights Reserved.
Session short name = A
00000000011111111112222222222333333333344444444445555555555666666666677777777778
12345678901234567890123456789012345678901234567890123456789012345678901234567890
================================================================================
Attachmate PROFS Main Menu A00
Press one of the following PF keys.
PF1 Process calendars Time: 11:38 AM
PF2 Open the mail
PF3 Find documents 1999 MAR 1999
PF4 Process notes and messages S M T W T F S
PF5 Prepare documents 1 2 3 4 5 6
PF6 Process documents from other sources 7 8 9 10 11 12 13
PF7 Process the mail log 14 15 16 17 18 19 20
PF8 Check the status of outgoing mail 21 21 23 24 25 26 27
28 29 30 31
PF10 Add an automatic reminder
PF11 View main menu number 2
5684-084 (C) Copyright IBM Corp. 1983, 1992 PF9 Help PF12 End
------------------------------------------------------------------------------
You have new mail: press PF2 to open your mail
===>
Mail Waiting
================================================================================
Screen contains 49 fields.
Cursor is at [23,6].
Field summary:
Unp = Unprotected AN = Alphanumeric DO = Digits only
Nds = Nondisplay AB = Alphabetic only MS = Mag stripe data only
Int = Intensified NS = Numeric shift SN = Signed numeric
Mod = Modified NO = Numeric only
Fld# Start End Length Unp Nds Int Mod Type First 26 Characters
-------------------------------------------------------------------------------
1 | [1,2] [1,76] 75 | | | X | | NO | [
2 | [1,78] [2,1] 4 | | | X | | AN | [A00 ]
3 | [2,3] [3,1] 79 | | | | | AN | [Press one of the following
4 | [3,3] [3,55] 53 | | | X | | AN | [PF1 Process calendars
5 | [3,57] [4,1] 25 | | | | | AN | [Time: 11:38 AM ]
6 | [4,3] [5,1] 79 | | | X | | AN | [PF2 Open the mail
7 | [5,3] [5,6] 4 | | | | | AN | [PF3 ]
8 | [5,8] [5,48] 41 | | | | | AN | [Find documents
9 | [5,50] [6,1] 32 | | | | | AN | [ 1999 MAR 1999
10 | [6,3] [6,6] 4 | | | | | AN | [PF4 ]
11 | [6,8] [6,48] 41 | | | | | AN | [Process notes and messages
12 | [6,50] [7,1] 32 | | | | | AN | [ S M T W T F
13 | [7,3] [7,6] 4 | | | | | AN | [PF5 ]
14 | [7,8] [7,48] 41 | | | | | AN | [Prepare documents
15 | [7,50] [7,54] 5 | | | | | AN | [ ]
16 | [7,56] [7,58] 3 | | | X | | AN | [1 ]
17 | [7,60] [8,1] 22 | | | | | AN | [2 3 4 5 6 ]
18 | [8,3] [8,6] 4 | | | | | AN | [PF6 ]
19 | [8,8] [8,48] 41 | | | | | AN | [Process documents from oth
20 | [8,50] [9,1] 32 | | | | | AN | [ 7 8 9 10 11 12 1
21 | [9,3] [9,6] 4 | | | | | AN | [PF7 ]
22 | [9,8] [9,48] 41 | | | | | AN | [Process the mail log
23 | [9,50] [10,1] 32 | | | | | AN | [ 14 15 16 17 18 19 2
24 | [10,3] [10,6] 4 | | | | | AN | [PF8 ]
25 | [10,8] [10,48] 41 | | | | | AN | [Check the status of outgoi
26 | [10,50] [10,80] 31 | | | | | AN | [ 21 21 23 24 25 26 2
27 | [11,2] [11,48] 47 | | | X | | AN | [
28 | [11,50] [11,80] 31 | | | | | AN | [ 28 29 30 31
29 | [12,2] [12,6] 5 | | | | | AN | [PF10 ]
30 | [12,8] [12,48] 41 | | | | | AN | [Add an automatic reminder
31 | [12,50] [12,80] 31 | | | | | AN | [
32 | [13,2] [13,6] 5 | | | | | AN | [PF11 ]
33 | [13,8] [14,6] 79 | | | | | AN | [View main menu number 2
34 | [14,8] [14,50] 43 | | | | | AN | [5684-084 (C) Copyright IBM
35 | [14,52] [14,67] 16 | | | | | AN | [ PF9 Help ]
36 | [14,69] [14,80] 12 | | | X | | AN | [PF12 End ]
37 | [15,2] [15,79] 78 | | | X | | AN | [--------------------------
38 | [16,1] [16,79] 79 | | | | | AN | [
39 | [17,1] [17,24] 24 | | | | | AN | [You have new mail: press]
40 | [17,26] [17,28] 3 | | | X | | AN | [PF2]
41 | [17,30] [17,79] 50 | | | | | AN | [to open your mail
42 | [18,1] [18,79] 79 | | | | | AN | [
43 | [19,1] [19,79] 79 | | | | | AN | [
44 | [20,1] [20,79] 79 | | | | | AN | [
45 | [21,1] [21,79] 79 | | | | | AN | [
46 | [22,1] [22,79] 79 | | | | | AN | [
47 | [23,1] [23,4] 4 | | | X | | AN | [===>]
48 | [23,6] [24,45] 120 | X | | X | X | AN | [
49 | [24,47] [24,80] 34 | | | X | | AN | [ Mail
Full field contents:
*** Field 1:
[ Attachmate PROFS Main Menu ]
*** Field 2:
[A00 ]
*** Field 3:
[Press one of the following PF keys.
]
*** Field 4:
[PF1 Process calendars ]
*** Field 5:
[Time: 11:38 AM ]
*** Field 6:
[PF2 Open the mail
]
*** Field 7:
[PF3 ]
*** Field 8:
[Find documents ]
*** Field 9:
[ 1999 MAR 1999 ]
*** Field 10:
[PF4 ]
*** Field 11:
[Process notes and messages ]
*** Field 12:
[ S M T W T F S ]
*** Field 13:
[PF5 ]
*** Field 14:
[Prepare documents ]
*** Field 15:
[ ]
*** Field 16:
[1 ]
*** Field 17:
[2 3 4 5 6 ]
*** Field 18:
[PF6 ]
*** Field 19:
[Process documents from other sources ]
*** Field 20:
[ 7 8 9 10 11 12 13 ]
*** Field 21:
[PF7 ]
*** Field 22:
[Process the mail log ]
*** Field 23:
[ 14 15 16 17 18 19 20 ]
*** Field 24:
[PF8 ]
*** Field 25:
[Check the status of outgoing mail ]
*** Field 26:
[ 21 21 23 24 25 26 27 ]
*** Field 27:
[ ]
*** Field 28:
[ 28 29 30 31 ]
*** Field 29:
[PF10 ]
*** Field 30:
[Add an automatic reminder ]
*** Field 31:
[ ]
*** Field 32:
[PF11 ]
*** Field 33:
[View main menu number 2
]
*** Field 34:
[5684-084 (C) Copyright IBM Corp. 1983, 1992]
*** Field 35:
[ PF9 Help ]
*** Field 36:
[PF12 End ]
*** Field 37:
[------------------------------------------------------------------------------]
*** Field 38:
[
]
*** Field 39:
[You have new mail: press]
*** Field 40:
[PF2]
*** Field 41:
[to open your mail ]
*** Field 42:
[
]
*** Field 43:
[
]
*** Field 44:
[
]
*** Field 45:
[
]
*** Field 46:
[
]
*** Field 47:
[===>]
*** Field 48:
[
]
*** Field 49:
[ Mail Waiting]
