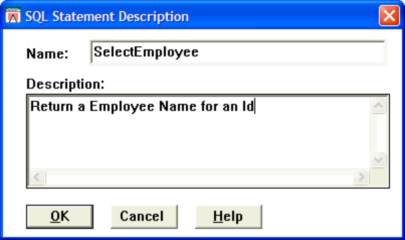

SQL Statement Description Dialog Box

Scroll Prev Top Next More

Use this dialog box to change the name of the SQL statement currently displayed in the SQL Editor window, or to create or change the SQL statement's description.

Name

Displays the name of the current SQL statement. Change this if desired by entering a unique 1-18 character alphanumeric value. The name must be unique among all statements within the current SAM.



Description

Displays the description of the current SQL statement. Change this if desired by entering a description of any length. This description will be generated as a comment in the associated ESL action routine code.



OK

Associates the name and description with the SQL statement.



Cancel

Closes the dialog box without performing any action.



Help

Displays help for the dialog box.



Display this dialog box by selecting SQL Statement>Description.
