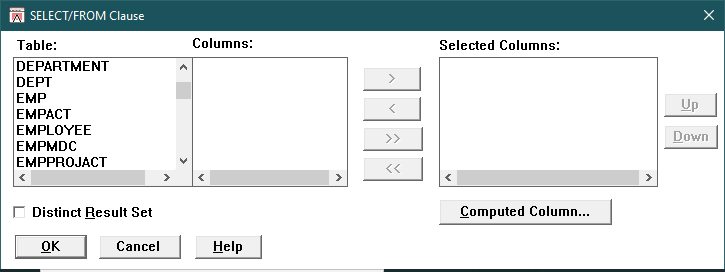

Table

Lists the tables in the current database. When you select a table, its columns appear in the Columns list box.

Columns

Lists the columns in the selected table. Select some or all columns.

>

Copies the highlighted columns in the Columns list box to the Selected Columns list box.

<

Removes the highlighted columns from the Selected Columns list box.

>>

Copies all columns in the Columns list box to the Selected Columns list box.

<<

Removes all columns from the Selected Columns list box.

Selected Columns

Lists the selected columns. You can remove columns from this list, or move a column up or down.

Up

Moves the highlighted column up one position in the Selected Columns list box.

Down

Moves the highlighted column down one position in the Selected Columns list box.

Computed Column

Displays the Computed Column dialog box, which you can use to build an expression.

Distinct Result Set

Check to insert the DISTINCT keyword into the current SELECT statement, so that duplicate rows are eliminated.

When checked, the DISTINCT button in the Computed Column dialog box is disabled. You cannot have a distinct result set and a distinct computed column in the same SELECT statement.

OK

Adds the selected tables and columns to the SELECT statement in the SQL Editor window.

If there is a primary/foreign key relationship, a message box appears asking if you want to add the join clause. Select Yes to automatically apply the join clause to the SELECT statement.

Cancel

Closes the dialog box without performing any action.

Help

Displays help for the dialog box.
