ESL Documentation

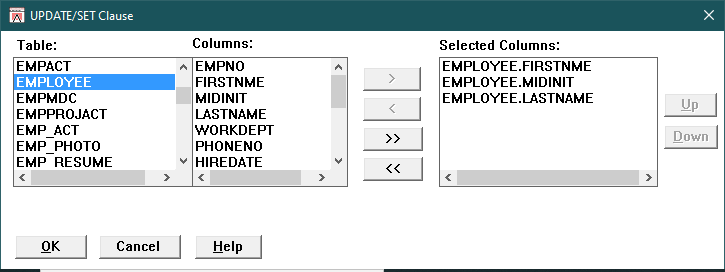

Use this dialog box to select a table and columns from the current database to include in the current SQL UPDATE statement.

UpdateSet

Table

Lists the tables in the current database. When you select a table, its columns appear in the Columns list box. You can only select columns from a single table.



Columns

Lists the columns in the selected table. Select some or all columns.



>

Copies the highlighted columns in the Columns list box to the Selected Columns list box.



<

Removes the highlighted columns from the Selected Columns list box.



>>

Copies all columns in the Columns list box to the Selected Columns list box.



<<

Removes all columns from the Selected Columns list box.



Selected Columns

Displays the selected columns. You can remove columns from this list, or move a column up or down.



Up

Moves the highlighted column up one position in the Selected Columns list box.



Down

Moves the highlighted column down one position in the Selected Columns list box.



OK

Adds the selected tables and columns to the UPDATE statement in the SQL Editor window.

For a positioned UPDATE, displays the WHERE CURRENT OF Clause dialog box.



Cancel

Closes the dialog box without performing any action.



Help

Displays help for the dialog box.



Display this dialog box by creating an UPDATE statement and then selecting SQL Statement>Tables or the Tables button.
